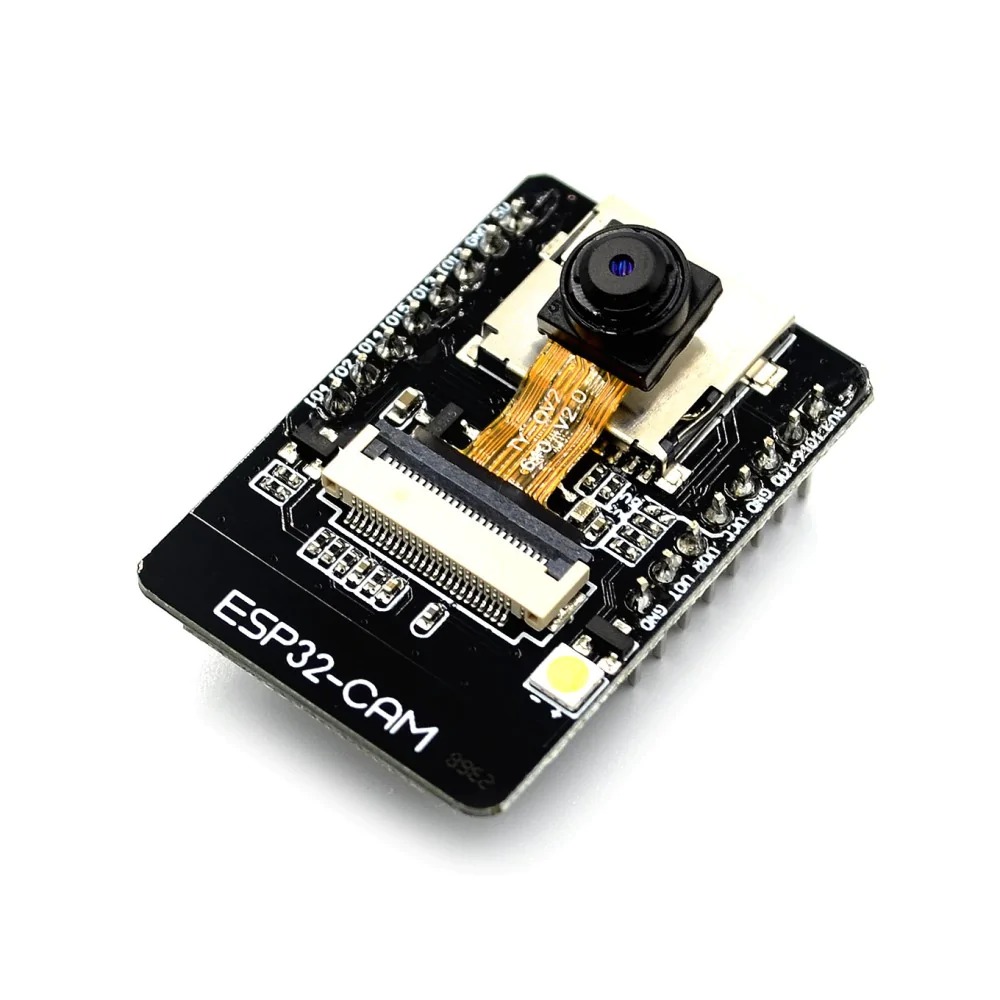

ESP32 CAM ESP32-S WIFI BLUETOOTH Camera Module

Name: ESP32 CAM ESP32-S WIFI BLUETOOTH Camera Module
SKU: EK2064
Price: 550.00 EGP
Availability: OutOfStock

ESP32-CAM ESP32-S Wi-Fi Bluetooth Camera Module
1. Processor: ESP32-S dual-core
2. Connectivity: Wi-Fi 802.11 b/g/n
3. Connectivity: Bluetooth & BLE
4. Camera: OV2640 (supports OV7670)
5. Storage: MicroSD card slot
6. Input Voltage: 5V DC

SKU: EK2064 Category: ESP WiFi Module Tags: Bluetooth, Bluetooth camera, camera module, ESP WiFi Module., ESP32, ESP32-CAM | ESP32-CAM، ESP32-S، وحدة كاميرا، كاميرا واي فاي، كاميرا بلوتوث، كاميرا إنترنت الأشياء، OV2640، وحدة مراقبة, ESP32-S, IoT camera, OV2640, surveillance module, Wi-Fi camera, WiFi

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

550,00 EGP

Compare

15 People watching this product now!

Payment Methods:

Description

The ESP32-CAM is a compact development board that integrates an ESP32-S SoC with a camera module, enabling low-power image capture and transmission. It supports Wi-Fi (802.11 b/g/n) and Bluetooth (BLE) connectivity, allowing it to stream video, take photos, or act as a wireless sensor node. This module is ideal for IoT projects, home security systems, and remote surveillance.

At its core is the ESP32-S chip, a dual-core processor with a built-in wireless stack and ample flash memory for firmware. The camera interface supports popular OV-series sensors, allowing for various resolutions and formats. The board includes a microSD card slot for local storage, a flash LED for illumination, and a standard GPIO pin header for interfacing with external sensors and actuators. Its small footprint and low-power capabilities make it a powerful solution for portable and battery-powered applications.

ESP32-S dual-core processor
Integrated 802.11 b/g/n Wi-Fi
Bluetooth Classic and BLE support
Camera interface for OV2640/OV7670 sensors
MicroSD card slot for image/video storage
Onboard flash LED for low-light capture
Low power consumption for battery operation
Compact size for embedded projects

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
ESP32-CAM	(program via external USB-serial adapter)	U0R/U0T -> adapter TX/RX, plus GPIO0->GND during flashing

📟

ESP32 CAM ESP32-S WIFI BLUETOOTH Camera Module

1 Example • C/C++ | Boards: ESP32

Wrap

ESP32 CAM ESP32-S WIFI BLUETOOTH Camera Module - ESP32

📄 File: esp32_cam_esp32-s_wifi_bluetooth_camera_module_-_esp32.inoESP32

331 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// See the linked CameraWebServer example for the full sketch (pin config + camera init is board-variant-specific and quite long).

6void setup() {

7 Serial.begin(115200);

8 // camera_config_t config = ... ; esp_camera_init(&config); - see linked example

11void loop() {

12}

Project Notes:

Standalone ESP32 board with an onboard camera - programmed directly (usually needs a separate USB-to-serial adapter, since most ESP32-CAM boards have no onboard USB). Full camera-streaming code is long/library-specific - see the linked example for the complete sketch.

Required Libraries:

ESP32 CameraWebServer (official example)GitHub

نظرة عامة ومواصفات المنتج — بالعربية

ESP32 CAM ESP32-S WIFI BLUETOOTH Camera Module متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم ESP WiFi Module، بسعر 550,00 EGP. كود المنتج لدينا: EK2064. المنتج غير متوفر حالياً — تواصل معنا عبر واتساب لمعرفة موعد توفره القادم.

أهم المواصفات الفنية:

Processor: ESP32-S dual-core
Wireless: Bluetooth Classic / BLE
Camera Sensor: OV2640 (supports OV7670)
Storage: MicroSD card
Flash: Onboard LED
I/O Pins: Standard GPIO breakout
Input Voltage: 5V DC
Flash Memory: 4MB (typical)

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من ESP WiFi Module في إكوسترا.

Specification

WeightWeight	10 g
Dimensions	4,05 × 2,7 × 1,2 cm
Processor	ESP32-S dual-core
Wireless	Bluetooth Classic / BLE
Camera Sensor	OV2640 (supports OV7670)
Storage	MicroSD card
Flash	Onboard LED
I/O Pins	Standard GPIO breakout
Input Voltage	5V DC
Flash Memory	4MB (typical)
