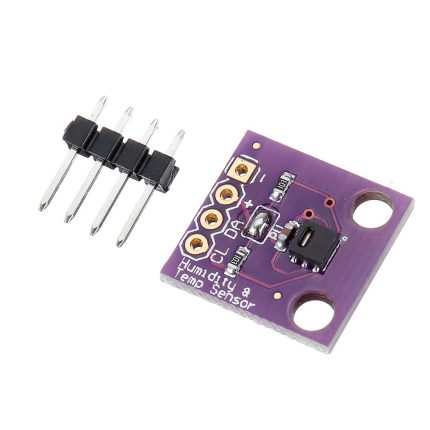

GY-213V HDC1080 Digital Humidity

High accuracy and stability for humidity measurement
Low power consumption, suitable for battery-operated devices
Easy integration with various microcontrollers via I2C interface
Compact size for easy embedding in different applications
Built-in temperature compensation for accurate humidity readings

SKU: EK1563 Categories: Sensors, Temperature & Humidity Sensor Tags: Digital Humidity, electronics, Sensor, Sensors, Temperature & Humidity Sensor, الكترونكس

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

195,00 EGP

Compare

17 People watching this product now!

Payment Methods:

Description

The GY-213V HDC1080 Digital Humidity Sensor is a compact and highly accurate sensor designed to measure humidity levels in a wide range of applications. Utilizing the HDC1080 sensor chip, it provides reliable and precise humidity readings with minimal power consumption. This module is ideal for use in environmental monitoring, weather stations, and indoor climate control systems.

The GY-213V features a digital interface, which simplifies integration with microcontrollers and other digital systems. Its small form factor makes it suitable for embedded systems and space-constrained applications. With its high accuracy and ease of use, the GY-213V is an excellent choice for both hobbyists and professionals seeking to monitor and manage humidity levels effectively.

Specifications

Sensor Chip: HDC1080
Measurement Range: 0% to 100% Relative Humidity (RH)
Humidity Accuracy: ±4% RH (typical), ±6% RH (maximum)
Resolution: 14-bit (0.01% RH per bit)
Power Supply: 3.3V to 5V DC
Current Consumption:
- Active Mode: 0.5 mA (typical)
- Sleep Mode: < 1 µA
Interface: I2C (Inter-Integrated Circuit)
I2C Address: 0x40 (default)
Operating Temperature Range: -40°C to +125°C (sensor range), -20°C to +60°C (typical operating range)
Dimensions: Approximately 25mm x 20mm x 5mm
Connector: 4-pin header (GND, VCC, SDA, SCL)
Data Output: Digital (Humidity and Temperature data)
Package Includes: GY-213V Module, Pin Header

Features

High accuracy and stability for humidity measurement
Low power consumption, suitable for battery-operated devices
Easy integration with various microcontrollers via I2C interface
Compact size for easy embedding in different applications
Built-in temperature compensation for accurate humidity readings

This detailed description and specification should give you a clear understanding of the GY-213V HDC1080 Digital Humidity Sensor and its capabilities.

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
HDC1080	VCC/GND/SDA/SCL	3.3-5V / GND / board SDA / board SCL

📟

GY-213V HDC1080 Digital Humidity

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

GY-213V HDC1080 Digital Humidity - Arduino Uno

GY-213V HDC1080 Digital Humidity - Arduino Nano

GY-213V HDC1080 Digital Humidity - Arduino Mega

GY-213V HDC1080 Digital Humidity - ESP32

GY-213V HDC1080 Digital Humidity - ESP8266

GY-213V HDC1080 Digital Humidity - STM32

GY-213V HDC1080 Digital Humidity - Raspberry Pi Pico

📄 File: gy-213v_hdc1080_digital_humidity_-_arduino_uno.inoArduino Uno

547 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for Arduino Uno: A4=SDA, A5=SCL. VCC->3.3V or 5V per module label, GND->GND.

6#include <Wire.h>

7#include <ClosedCube_HDC1080.h>

9ClosedCube_HDC1080 hdc1080;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 hdc1080.begin(0x40); // default I2C address

15}

17void loop() {

18 Serial.print("Temp: "); Serial.print(hdc1080.readTemperature()); Serial.print(" C ");

19 Serial.print("Humidity: "); Serial.print(hdc1080.readHumidity()); Serial.println(" %");

20 delay(1000);

21}

📄 File: gy-213v_hdc1080_digital_humidity_-_arduino_nano.inoArduino Nano

548 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for Arduino Nano: A4=SDA, A5=SCL. VCC->3.3V or 5V per module label, GND->GND.

6#include <Wire.h>

7#include <ClosedCube_HDC1080.h>

9ClosedCube_HDC1080 hdc1080;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 hdc1080.begin(0x40); // default I2C address

15}

17void loop() {

18 Serial.print("Temp: "); Serial.print(hdc1080.readTemperature()); Serial.print(" C ");

19 Serial.print("Humidity: "); Serial.print(hdc1080.readHumidity()); Serial.println(" %");

20 delay(1000);

21}

📄 File: gy-213v_hdc1080_digital_humidity_-_arduino_mega.inoArduino Mega

550 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for Arduino Mega: D20=SDA, D21=SCL. VCC->3.3V or 5V per module label, GND->GND.

6#include <Wire.h>

7#include <ClosedCube_HDC1080.h>

9ClosedCube_HDC1080 hdc1080;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 hdc1080.begin(0x40); // default I2C address

15}

17void loop() {

18 Serial.print("Temp: "); Serial.print(hdc1080.readTemperature()); Serial.print(" C ");

19 Serial.print("Humidity: "); Serial.print(hdc1080.readHumidity()); Serial.println(" %");

20 delay(1000);

21}

📄 File: gy-213v_hdc1080_digital_humidity_-_esp32.inoESP32

549 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for ESP32: GPIO21=SDA, GPIO22=SCL. VCC->3.3V or 5V per module label, GND->GND.

6#include <Wire.h>

7#include <ClosedCube_HDC1080.h>

9ClosedCube_HDC1080 hdc1080;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 hdc1080.begin(0x40); // default I2C address

15}

17void loop() {

18 Serial.print("Temp: "); Serial.print(hdc1080.readTemperature()); Serial.print(" C ");

19 Serial.print("Humidity: "); Serial.print(hdc1080.readHumidity()); Serial.println(" %");

20 delay(1000);

21}

📄 File: gy-213v_hdc1080_digital_humidity_-_esp8266.inoESP8266

557 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for ESP8266: D2(GPIO4)=SDA, D1(GPIO5)=SCL. VCC->3.3V or 5V per module label, GND->GND.

6#include <Wire.h>

7#include <ClosedCube_HDC1080.h>

9ClosedCube_HDC1080 hdc1080;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 hdc1080.begin(0x40); // default I2C address

15}

17void loop() {

18 Serial.print("Temp: "); Serial.print(hdc1080.readTemperature()); Serial.print(" C ");

19 Serial.print("Humidity: "); Serial.print(hdc1080.readHumidity()); Serial.println(" %");

20 delay(1000);

21}

📄 File: gy-213v_hdc1080_digital_humidity_-_stm32.inoSTM32

564 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for STM32: PB7=SDA, PB6=SCL (Blue Pill / F103C8). VCC->3.3V or 5V per module label, GND->GND.

6#include <Wire.h>

7#include <ClosedCube_HDC1080.h>

9ClosedCube_HDC1080 hdc1080;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 hdc1080.begin(0x40); // default I2C address

15}

17void loop() {

18 Serial.print("Temp: "); Serial.print(hdc1080.readTemperature()); Serial.print(" C ");

19 Serial.print("Humidity: "); Serial.print(hdc1080.readHumidity()); Serial.println(" %");

20 delay(1000);

21}

📄 File: gy-213v_hdc1080_digital_humidity_-_raspberry_pi_pico.inoRaspberry Pi Pico

559 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for Raspberry Pi Pico: GPIO4=SDA, GPIO5=SCL. VCC->3.3V or 5V per module label, GND->GND.

6#include <Wire.h>

7#include <ClosedCube_HDC1080.h>

9ClosedCube_HDC1080 hdc1080;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 hdc1080.begin(0x40); // default I2C address

15}

17void loop() {

18 Serial.print("Temp: "); Serial.print(hdc1080.readTemperature()); Serial.print(" C ");

19 Serial.print("Humidity: "); Serial.print(hdc1080.readHumidity()); Serial.println(" %");

20 delay(1000);

21}

Project Notes:

I2C temperature + humidity sensor (HDC1080 chip).

Required Libraries:

ClosedCube_HDC1080GitHub

نظرة عامة ومواصفات المنتج — بالعربية

GY-213V HDC1080 Digital Humidity متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Sensors وTemperature & Humidity Sensor، بسعر 195,00 EGP. كود المنتج لدينا: EK1563. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Sensor Chip: HDC1080
Measurement Range: 0% to 100% Relative Humidity (RH)
Humidity Accuracy: ±4% RH (typical), ±6% RH (maximum)
Resolution: 14-bit (0.01% RH per bit)
Current Consumption: Active Mode: 0.5 mA (typical) Sleep Mode: < 1 µA
Power Supply: 3.3V to 5V DC
واجهة الاتصال: I2C (Inter-Integrated Circuit)
I2C Address: 0x40 (default)

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من Sensors في إكوسترا.

Specification

WeightWeight	6 g
Dimensions	3 × 2 × 1 cm
sensor-chip	HDC1080
measurement-range	0% to 100% Relative Humidity (RH)
humidity-accuracy	±4% RH (typical), ±6% RH (maximum)
resolution	14-bit (0.01% RH per bit)
current-consumption	Active Mode: 0.5 mA (typical) Sleep Mode: < 1 µA
power-supply	3.3V to 5V DC
interface	I2C (Inter-Integrated Circuit)
i2c-address	0x40 (default)
operating-temperature-range	-40°C to +125°C (sensor range), -20°C to +60°C (typical operating range)
dimensions	Approximately 25mm x 20mm x 5mm
connector	4-pin header (GND, VCC, SDA, SCL)
data-output	Digital (Humidity and Temperature data)
package-includes	GY-213V Module, Pin Header
