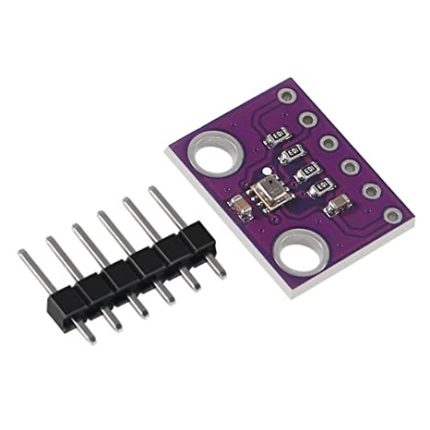

GY-BMP280-3.3 Precision Altimeter Atmospheric Pressure BMP280 Sensor Module
- Comes with the BME280 sensor.
- Pressure accuracy of ±1 hPa.
- Temperature accuracy ±1.0°C.
- Altimeter accuracy ±1 meter.
- Humidity: +-3%
Apple Shopping Event
70,00 EGP
Payment Methods:
Description
GY-BME280-3.3 BME280 Atmospheric Pressure Sensor Module is a Breakout Board featuring a Bosch Sensortec ME280 Temperature, Humidity & Pressure Sensor.
The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.
Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO.
If you connect board to both power rails VDD_IO 1.8V and VDD 3.3V be sure to remove the power rail jumper GS1!
Features:
- Package 2.5 mm x 2.5 mm x 0.93 mm metal lid LGA
- Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
- Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V
- VDDIO interface voltage range: 1.2 V to 3.6 V
- Current consumption 1.8 uA @ 1 Hz humidity and temperature
- 2.8 uA @ 1 Hz pressure and temperature
- 3.6 uA @ 1 Hz humidity, pressure and temperature
- 0.1 uA in sleep mode
- Operating range -40…+85 C, 0…100 % rel. humidity, 300…1100 hPa- Humidity sensor and pressure sensor can be independently enabled/disabled
Package Includes:
1 x GY-BME280-3.3 Precision Altimeter Atmospheric Pressure Sensor Module
1 x 6 pin Male Header
نظرة عامة ومواصفات المنتج — بالعربية
GY-BMP280-3.3 Precision Altimeter Atmospheric Pressure BMP280 Sensor Module متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Load / Pressure / Force / Flex Sensor وSensors، بسعر 70,00 EGP. كود المنتج لدينا: EK1366. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- الموديل: GY-BME280-3.3
- Chip: BME280
- Power Supply: 3.3-5VDC
- Peak Current: 1.12mA
- Air Pressure Range: 300-1100hPa (equi. to +9000…-500m above sea level)
- Temperature Range: -40 to +85 °C
- Digital Interfaces: I2C (up to 3.4 MHz) SPI (3 and 4 wire, up to 10 MHz)
- الوزن: 0.8 g
هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.
تصفّح المزيد من Load / Pressure / Force / Flex Sensor في إكوسترا.
Specification
Specification
| WeightWeight | 0,8000 g |
|---|---|
| Dimensions | 15,5 × 12 × 2,5 cm |
| model | GY-BME280-3.3 |
| chip | BME280 |
| power-supply | 3.3-5VDC |
| peak-current | 1.12mA |
| air-pressure-range | 300-1100hPa (equi. to +9000…-500m above sea level) |
| temperature-range | -40 to +85 °C |
| digital-interfaces | I2C (up to 3.4 MHz) SPI (3 and 4 wire, up to 10 MHz) |
