HX1838 VS1838 NEC Infrared IR Remote Control Sensor Module For Arduino

Crystal: the oscillation frequency of 455.
Button: free height is less than 3mm, the force 200-350g, the life of more than 200 000.
Photo-detector and preamplifier in one package.
Internal filter for PCM frequency.
Improved shielding against EMI.
Don’t forget to add CR2025 Battery to your Cart as this remote does not come with a battery

SKU: EK1348 Categories: IoT and Wireless, IR and RF Transmitter and Receivers Tags: Arduino, Infrared, IoT and Wireless, IR and RF Transmitter and Receivers

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

60,00 EGP

Compare

15 People watching this product now!

Payment Methods:

Description

This is HX1838 VS1838 NEC Infrared IR Wireless Remote Control Sensor Module For Arduino. The sensor uses HX1838, with high sensitivity and Operating voltage 5V. Output form Digital output. VCC: 3.3V-5V external voltage (can be directly connected to the 5v microcontroller and 3.3v microcontroller).

Kit theory test distance of about 5-8 meters, but the practical application depends on the ambient factors you use, as well as the middle barrier (such as diaphragm, glass, obstructions or other material blocking),

Receiving head with HX1838 with power work instructions lights, receive 38K frequency any remote coding data.

This is new ultra-thin 38K universal infrared IR Remote Control , NEC encoding format 1-21-key remote control, USB port stereo, car MP3, foot bath, lighting, digital photo frame, microcontroller development board, learning board, etc.

Note: IR Remote does not come with Battery (CR2025) you have to buy it separately.

Features:

Crystal: the oscillation frequency of 455
Encoding: the encoding format of the NEC, upd6122 encoding scheme, the user code 00FF, key coding below
Button: free height is less than 3mm, the force 200-350g, the life of more than 200 000
Photo-detector and preamplifier in one package
Internal filter for PCM frequency
Improved shielding against EMI

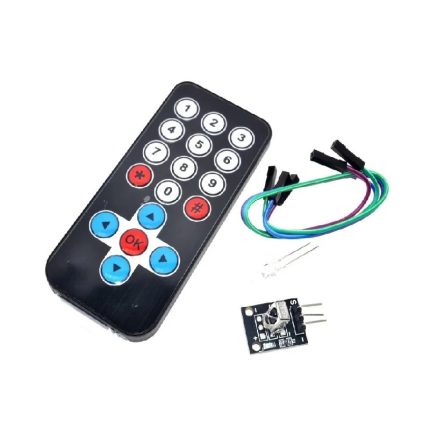

Package Includes:

1 x IR Remote Control Module

1 x IR Telecontrol

1x Receiver.

Tutorial

Arduino Infrared Remote Tutorial

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
HX1838	VCC/GND/OUT	3.3-5V / GND / board digital pin

📟

HX1838 VS1838 NEC Infrared IR Remote Control Sensor Module For Arduino

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

HX1838 VS1838 NEC Infrared IR Remote Control Sensor Module For Arduino - Arduino Uno

HX1838 VS1838 NEC Infrared IR Remote Control Sensor Module For Arduino - Arduino Nano

HX1838 VS1838 NEC Infrared IR Remote Control Sensor Module For Arduino - Arduino Mega

HX1838 VS1838 NEC Infrared IR Remote Control Sensor Module For Arduino - ESP32

HX1838 VS1838 NEC Infrared IR Remote Control Sensor Module For Arduino - ESP8266

HX1838 VS1838 NEC Infrared IR Remote Control Sensor Module For Arduino - STM32

HX1838 VS1838 NEC Infrared IR Remote Control Sensor Module For Arduino - Raspberry Pi Pico

📄 File: hx1838_vs1838_nec_infrared_ir_remote_control_sensor_module_for_arduino_-_arduino_uno.inoArduino Uno

377 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// OUT pin 2 on Arduino Uno

6#include <IRremote.hpp>

8#define IR_RECEIVE_PIN 2

10void setup() {

11 Serial.begin(115200);

12 IrReceiver.begin(IR_RECEIVE_PIN, ENABLE_LED_FEEDBACK);

13}

15void loop() {

16 if (IrReceiver.decode()) {

17 Serial.println(IrReceiver.decodedIRData.decodedRawData, HEX);

18 IrReceiver.resume();

19 }

20}

📄 File: hx1838_vs1838_nec_infrared_ir_remote_control_sensor_module_for_arduino_-_arduino_nano.inoArduino Nano

378 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// OUT pin 2 on Arduino Nano

6#include <IRremote.hpp>

8#define IR_RECEIVE_PIN 2

10void setup() {

11 Serial.begin(115200);

12 IrReceiver.begin(IR_RECEIVE_PIN, ENABLE_LED_FEEDBACK);

13}

15void loop() {

16 if (IrReceiver.decode()) {

17 Serial.println(IrReceiver.decodedIRData.decodedRawData, HEX);

18 IrReceiver.resume();

19 }

20}

📄 File: hx1838_vs1838_nec_infrared_ir_remote_control_sensor_module_for_arduino_-_arduino_mega.inoArduino Mega

378 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// OUT pin 2 on Arduino Mega

6#include <IRremote.hpp>

8#define IR_RECEIVE_PIN 2

10void setup() {

11 Serial.begin(115200);

12 IrReceiver.begin(IR_RECEIVE_PIN, ENABLE_LED_FEEDBACK);

13}

15void loop() {

16 if (IrReceiver.decode()) {

17 Serial.println(IrReceiver.decodedIRData.decodedRawData, HEX);

18 IrReceiver.resume();

19 }

20}

📄 File: hx1838_vs1838_nec_infrared_ir_remote_control_sensor_module_for_arduino_-_esp32.inoESP32

371 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// OUT pin 4 on ESP32

6#include <IRremote.hpp>

8#define IR_RECEIVE_PIN 4

10void setup() {

11 Serial.begin(115200);

12 IrReceiver.begin(IR_RECEIVE_PIN, ENABLE_LED_FEEDBACK);

13}

15void loop() {

16 if (IrReceiver.decode()) {

17 Serial.println(IrReceiver.decodedIRData.decodedRawData, HEX);

18 IrReceiver.resume();

19 }

20}

📄 File: hx1838_vs1838_nec_infrared_ir_remote_control_sensor_module_for_arduino_-_esp8266.inoESP8266

375 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// OUT pin D4 on ESP8266

6#include <IRremote.hpp>

8#define IR_RECEIVE_PIN D4

10void setup() {

11 Serial.begin(115200);

12 IrReceiver.begin(IR_RECEIVE_PIN, ENABLE_LED_FEEDBACK);

13}

15void loop() {

16 if (IrReceiver.decode()) {

17 Serial.println(IrReceiver.decodedIRData.decodedRawData, HEX);

18 IrReceiver.resume();

19 }

20}

📄 File: hx1838_vs1838_nec_infrared_ir_remote_control_sensor_module_for_arduino_-_stm32.inoSTM32

375 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// OUT pin PB4 on STM32

6#include <IRremote.hpp>

8#define IR_RECEIVE_PIN PB4

10void setup() {

11 Serial.begin(115200);

12 IrReceiver.begin(IR_RECEIVE_PIN, ENABLE_LED_FEEDBACK);

13}

15void loop() {

16 if (IrReceiver.decode()) {

17 Serial.println(IrReceiver.decodedIRData.decodedRawData, HEX);

18 IrReceiver.resume();

19 }

20}

📄 File: hx1838_vs1838_nec_infrared_ir_remote_control_sensor_module_for_arduino_-_raspberry_pi_pico.inoRaspberry Pi Pico

383 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// OUT pin 2 on Raspberry Pi Pico

6#include <IRremote.hpp>

8#define IR_RECEIVE_PIN 2

10void setup() {

11 Serial.begin(115200);

12 IrReceiver.begin(IR_RECEIVE_PIN, ENABLE_LED_FEEDBACK);

13}

15void loop() {

16 if (IrReceiver.decode()) {

17 Serial.println(IrReceiver.decodedIRData.decodedRawData, HEX);

18 IrReceiver.resume();

19 }

20}

Project Notes:

38kHz IR remote receiver module.

Required Libraries:

IRremoteGitHub

نظرة عامة ومواصفات المنتج — بالعربية

HX1838 VS1838 NEC Infrared IR Remote Control Sensor Module For Arduino متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم IoT and Wireless وIR and RF Transmitter and Receivers، بسعر 60,00 EGP. كود المنتج لدينا: EK1348. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Product Name: HX1838 / VS1838 IR Remote Control Sensor Module
البروتوكول: NEC Infrared Protocol
Operating Voltage: 3.3–5V
Receiver Type: VS1838B IR Sensor
Carrier Frequency: 38kHz
Control Distance: Up to 10m
Output Type: Digital
Interface Pins: OUT, VCC, GND

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من IoT and Wireless في إكوسترا.

Specification

WeightWeight	8 g
Dimensions	3 × 1,5 × 1 cm
Product Name	HX1838 / VS1838 IR Remote Control Sensor Module
Protocol	NEC Infrared Protocol
Operating Voltage	3.3–5V
Receiver Type	VS1838B IR Sensor
Carrier Frequency	38kHz
Control Distance	Up to 10m
Output Type	Digital
Interface Pins	OUT, VCC, GND
Indicator	Power/Signal LED
Compatibility	Arduino, ESP32, ESP8266, Raspberry Pi, Microcontrollers
Mount Type	Module with Header Pins
