KY-028 Digital Temperature Module

Name: KY-028 Digital Temperature Module
SKU: EK855
Price: 45.00 EGP
Availability: InStock

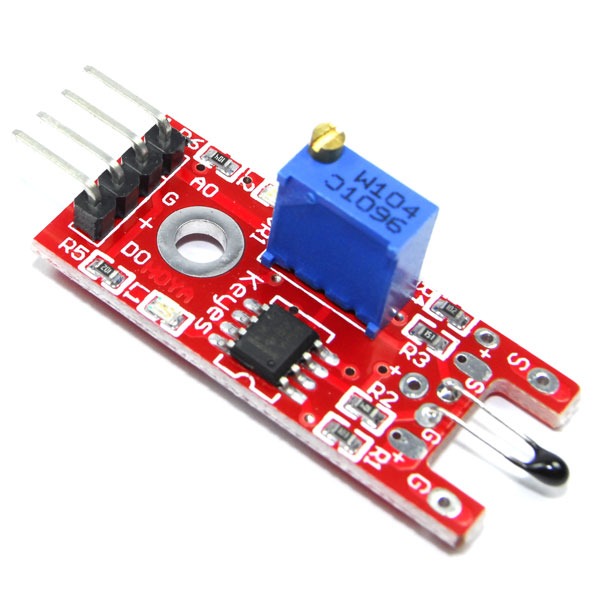

KY-028 digital temperature module with NTC thermistor and LM393 comparator.

SKU: EK855 Categories: Sensors, Temperature & Humidity Sensor Tags: Arduino Temperature Sensor, digital output sensor, digital temperature sensor, KY-028 temperature module | وحدة درجة حرارة KY-028، مستشعر درجة حرارة رقمي، وحدة ثرمستور NTC، مستشعر درجة حرارة LM393، مستشعر درجة حرارة أردوينو، كشف حراري، وحدة مفتاح درجة حرارة، مستشعر مخرج رقمي, LM393 temperature sensor, NTC thermistor module, Sensors, Temperature & Humidity Sensor, temperature switch module, thermal detection

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

45,00 EGP

Compare

6 People watching this product now!

Payment Methods:

Description

The simple circuit of digital temperature module and integrated LED connecting to digital 13 interfaces to make temperature indicator light. Use number 13 interface to connect the integrated LED, connect a digital temperature sensor to the number 3 interface. When the digital temperature sensor senses key signal, the LED is on, otherwise, it’s out.

Features:

Using the NTC thermistor sensor,
Good sensitivity
the comparator output signal clean waveform is good, driving ability than 15mA.
the output format: Digital switching output (0 and 1)
Power supply: 3 – 5V

Package Includes:

1 x Digital Temperature Module For Arduino AVR PIC DIY Maker

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
KY-028	VCC/GND/A0/D0	3.3-5V / GND / board analog pin / board digital pin

📟

KY-028 Digital Temperature Module

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

KY-028 Digital Temperature Module - Arduino Uno

KY-028 Digital Temperature Module - Arduino Nano

KY-028 Digital Temperature Module - Arduino Mega

KY-028 Digital Temperature Module - ESP32

KY-028 Digital Temperature Module - ESP8266

KY-028 Digital Temperature Module - STM32

KY-028 Digital Temperature Module - Raspberry Pi Pico

📄 File: ky-028_digital_temperature_module_-_arduino_uno.inoArduino Uno

619 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0, digital threshold pin 2 on Arduino Uno

6#define TEMP_A_PIN A0

7#define TEMP_D_PIN 2

9void setup() {

10 Serial.begin(115200);

11 pinMode(TEMP_D_PIN, INPUT);

12}

14void loop() {

15 int raw = analogRead(TEMP_A_PIN);

16 float voltage = raw * 5.0 / 1023.0;

17 bool overThreshold = digitalRead(TEMP_D_PIN) == LOW; // trips when the onboard potentiometer threshold is crossed

19 Serial.print("Raw: "); Serial.print(raw);

20 Serial.print(" Voltage: "); Serial.print(voltage);

21 Serial.println(overThreshold ? " -> Threshold tripped" : "");

23 delay(300);

24}

📄 File: ky-028_digital_temperature_module_-_arduino_nano.inoArduino Nano

620 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0, digital threshold pin 2 on Arduino Nano

6#define TEMP_A_PIN A0

7#define TEMP_D_PIN 2

9void setup() {

10 Serial.begin(115200);

11 pinMode(TEMP_D_PIN, INPUT);

12}

14void loop() {

15 int raw = analogRead(TEMP_A_PIN);

16 float voltage = raw * 5.0 / 1023.0;

17 bool overThreshold = digitalRead(TEMP_D_PIN) == LOW; // trips when the onboard potentiometer threshold is crossed

19 Serial.print("Raw: "); Serial.print(raw);

20 Serial.print(" Voltage: "); Serial.print(voltage);

21 Serial.println(overThreshold ? " -> Threshold tripped" : "");

23 delay(300);

24}

📄 File: ky-028_digital_temperature_module_-_arduino_mega.inoArduino Mega

620 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0, digital threshold pin 2 on Arduino Mega

6#define TEMP_A_PIN A0

7#define TEMP_D_PIN 2

9void setup() {

10 Serial.begin(115200);

11 pinMode(TEMP_D_PIN, INPUT);

12}

14void loop() {

15 int raw = analogRead(TEMP_A_PIN);

16 float voltage = raw * 5.0 / 1023.0;

17 bool overThreshold = digitalRead(TEMP_D_PIN) == LOW; // trips when the onboard potentiometer threshold is crossed

19 Serial.print("Raw: "); Serial.print(raw);

20 Serial.print(" Voltage: "); Serial.print(voltage);

21 Serial.println(overThreshold ? " -> Threshold tripped" : "");

23 delay(300);

24}

📄 File: ky-028_digital_temperature_module_-_esp32.inoESP32

613 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin 34, digital threshold pin 4 on ESP32

6#define TEMP_A_PIN 34

7#define TEMP_D_PIN 4

9void setup() {

10 Serial.begin(115200);

11 pinMode(TEMP_D_PIN, INPUT);

12}

14void loop() {

15 int raw = analogRead(TEMP_A_PIN);

16 float voltage = raw * 3.3 / 4095.0;

17 bool overThreshold = digitalRead(TEMP_D_PIN) == LOW; // trips when the onboard potentiometer threshold is crossed

19 Serial.print("Raw: "); Serial.print(raw);

20 Serial.print(" Voltage: "); Serial.print(voltage);

21 Serial.println(overThreshold ? " -> Threshold tripped" : "");

23 delay(300);

24}

📄 File: ky-028_digital_temperature_module_-_esp8266.inoESP8266

617 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0, digital threshold pin D4 on ESP8266

6#define TEMP_A_PIN A0

7#define TEMP_D_PIN D4

9void setup() {

10 Serial.begin(115200);

11 pinMode(TEMP_D_PIN, INPUT);

12}

14void loop() {

15 int raw = analogRead(TEMP_A_PIN);

16 float voltage = raw * 3.3 / 1023.0;

17 bool overThreshold = digitalRead(TEMP_D_PIN) == LOW; // trips when the onboard potentiometer threshold is crossed

19 Serial.print("Raw: "); Serial.print(raw);

20 Serial.print(" Voltage: "); Serial.print(voltage);

21 Serial.println(overThreshold ? " -> Threshold tripped" : "");

23 delay(300);

24}

📄 File: ky-028_digital_temperature_module_-_stm32.inoSTM32

619 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin PA0, digital threshold pin PB4 on STM32

6#define TEMP_A_PIN PA0

7#define TEMP_D_PIN PB4

9void setup() {

10 Serial.begin(115200);

11 pinMode(TEMP_D_PIN, INPUT);

12}

14void loop() {

15 int raw = analogRead(TEMP_A_PIN);

16 float voltage = raw * 3.3 / 4095.0;

17 bool overThreshold = digitalRead(TEMP_D_PIN) == LOW; // trips when the onboard potentiometer threshold is crossed

19 Serial.print("Raw: "); Serial.print(raw);

20 Serial.print(" Voltage: "); Serial.print(voltage);

21 Serial.println(overThreshold ? " -> Threshold tripped" : "");

23 delay(300);

24}

📄 File: ky-028_digital_temperature_module_-_raspberry_pi_pico.inoRaspberry Pi Pico

625 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin 26, digital threshold pin 2 on Raspberry Pi Pico

6#define TEMP_A_PIN 26

7#define TEMP_D_PIN 2

9void setup() {

10 Serial.begin(115200);

11 pinMode(TEMP_D_PIN, INPUT);

12}

14void loop() {

15 int raw = analogRead(TEMP_A_PIN);

16 float voltage = raw * 3.3 / 4095.0;

17 bool overThreshold = digitalRead(TEMP_D_PIN) == LOW; // trips when the onboard potentiometer threshold is crossed

19 Serial.print("Raw: "); Serial.print(raw);

20 Serial.print(" Voltage: "); Serial.print(voltage);

21 Serial.println(overThreshold ? " -> Threshold tripped" : "");

23 delay(300);

24}

Project Notes:

Thermistor module with both a raw analog output and a comparator digital threshold output.

نظرة عامة ومواصفات المنتج — بالعربية

KY-028 Digital Temperature Module متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Sensors وTemperature & Humidity Sensor، بسعر 45,00 EGP. كود المنتج لدينا: EK855. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Ic: LM393
Power Supply: 3 – 5V
Sensor: NTC Thermistor
Output: Digital switching (0 and 1)
Output Current: >15mA
Mounting: Fixed bolt
الوزن: 16 g

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من Sensors في إكوسترا.

Specification

WeightWeight	16,0000 g
Dimensions	3 × 2 × 1 cm
IC	LM393
Power Supply	3 – 5V
Sensor	NTC Thermistor
Output	Digital switching (0 and 1)
Output Current	>15mA
Mounting	Fixed bolt
