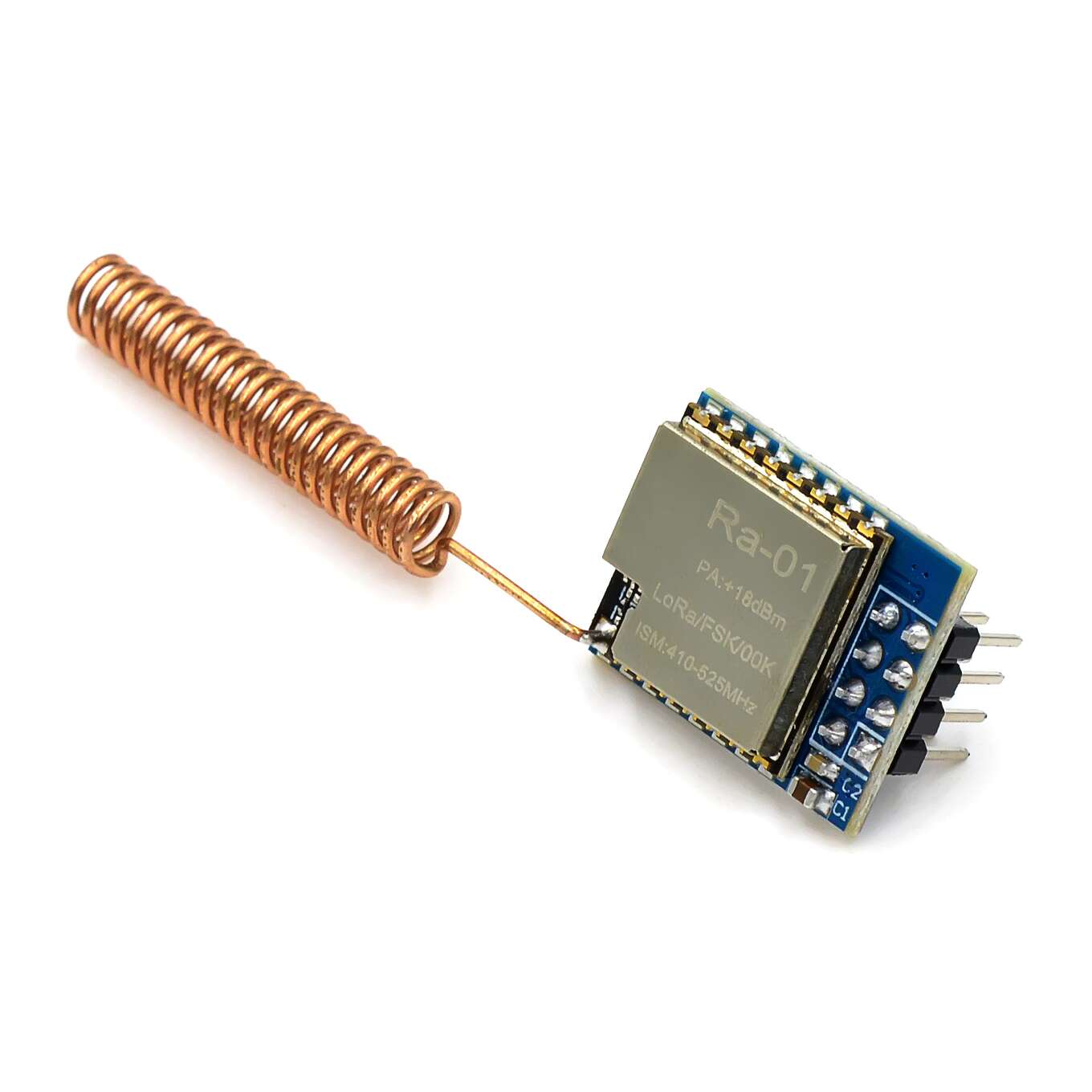

Ra-01 LoRa SX1278 433M 10KM Wireless Module

Product Highlights

Ultra-Long Range: Reliable data transmission up to 10KM (Line of Sight).
SX1278 Technology: Advanced LoRa™ modulation for superior interference immunity.
Battery Optimized: Sleep current lower than 1µA for multi-year sensor operation.
Industrial Grade: High sensitivity (-148dBm) and wide temperature tolerance.
Compact & Integrated: Small SMD footprint with an included spring antenna.

SKU: EK1948 Categories: IoT and Wireless, LORA WiFi Tags: IoT and Wireless, LORA WiFi

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

500,00 EGP

Compare

14 People watching this product now!

Payment Methods:

Description

Ra-01 LoRa SX1278 433MHz Wireless Module (10KM Range)

The Ra-01 is a high-performance long-range wireless transceiver module developed by
Ai-Thinker, based on the Semtech SX1278 chip. Using LoRa™ spread
spectrum technology, it overcomes the limitations of traditional RF communication, offering
extraordinary interference immunity and ultra-long-distance data transmission (up to 10KM).
It is the ultimate solution for IoT projects, remote sensing, and smart agriculture.

Key Features

Extreme Long Range: Capable of transmitting data up to 10KM in open-field (Line of Sight) conditions.
LoRa™ Modulation: Provides superior anti-interference performance compared to standard FSK/GFSK.
Ultra-Low Power Consumption: Features a sleep mode current of less than 1µA, perfect for battery-powered sensors.
High Sensitivity: Industry-leading sensitivity down to -148 dBm.
Compact Form Factor: Small SMD package (17 x 16 mm) with an integrated spring antenna for easy integration.

Full Technical Specifications

Attribute	Details
Main Chipset	Semtech SX1278
Operating Frequency	433 MHz (420MHz – 450MHz range)
Communication Interface	SPI (Half-Duplex)
Operating Voltage	1.8V to 3.7V DC (3.3V Recommended)
Max Transmit Power	+20 dBm (100mW)
Dynamic Range	127dB RSSI
Packet Engine	Up to 256 bytes with CRC
Operating Temperature	-40°C to +85°C (Industrial Grade)

Common Applications

Smart Agriculture: Monitoring soil moisture or weather stations across large farms.
Industrial Control: Long-distance wireless monitoring of machinery and equipment.
Smart City: Automated meter reading (AMR) and environmental monitoring.
Remote Robotics: Reliable control links for drones or outdoor ground vehicles.

⚠️ Critical Engineering Notes:

Logic Level: This module uses 3.3V logic. Connecting it directly to a 5V Arduino board without a level shifter will damage the chip.
Antenna Safety: Never power the module without the antenna connected. Operating without a load can cause permanent damage to the transmitter.
Power Supply: Ensure your 3.3V supply can handle the peak current (approx. 120mA) during transmission.

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Ra-01 (SX1278)	VCC/GND/NSS/RST/DIO0	3.3V only / GND / board digital / board digital / board digital

📟

Ra-01 LoRa SX1278 433M 10KM Wireless Module

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

Ra-01 LoRa SX1278 433M 10KM Wireless Module - Arduino Uno

Ra-01 LoRa SX1278 433M 10KM Wireless Module - Arduino Nano

Ra-01 LoRa SX1278 433M 10KM Wireless Module - Arduino Mega

Ra-01 LoRa SX1278 433M 10KM Wireless Module - ESP32

Ra-01 LoRa SX1278 433M 10KM Wireless Module - ESP8266

Ra-01 LoRa SX1278 433M 10KM Wireless Module - STM32

Ra-01 LoRa SX1278 433M 10KM Wireless Module - Raspberry Pi Pico

📄 File: ra-01_lora_sx1278_433m_10km_wireless_module_-_arduino_uno.inoArduino Uno

607 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// NSS=10, RST=9, DIO0=2 on Arduino Uno (MOSI/MISO/SCK use the board's default hardware SPI pins)

6#include <SPI.h>

7#include <LoRa.h>

9#define LORA_NSS 10

10#define LORA_RST 9

11#define LORA_DIO0 2

13void setup() {

14 Serial.begin(115200);

15 LoRa.setPins(LORA_NSS, LORA_RST, LORA_DIO0);

16 if (!LoRa.begin(433E6)) { // match your region's LoRa frequency (433/868/915 MHz)

17 Serial.println("LoRa init failed!");

18 while (1) delay(10);

19 }

20}

22void loop() {

23 LoRa.beginPacket();

24 LoRa.print("Hello from Ekostra");

25 LoRa.endPacket();

26 delay(2000);

27}

📄 File: ra-01_lora_sx1278_433m_10km_wireless_module_-_arduino_nano.inoArduino Nano

608 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// NSS=10, RST=9, DIO0=2 on Arduino Nano (MOSI/MISO/SCK use the board's default hardware SPI pins)

6#include <SPI.h>

7#include <LoRa.h>

9#define LORA_NSS 10

10#define LORA_RST 9

11#define LORA_DIO0 2

13void setup() {

14 Serial.begin(115200);

15 LoRa.setPins(LORA_NSS, LORA_RST, LORA_DIO0);

16 if (!LoRa.begin(433E6)) { // match your region's LoRa frequency (433/868/915 MHz)

17 Serial.println("LoRa init failed!");

18 while (1) delay(10);

19 }

20}

22void loop() {

23 LoRa.beginPacket();

24 LoRa.print("Hello from Ekostra");

25 LoRa.endPacket();

26 delay(2000);

27}

📄 File: ra-01_lora_sx1278_433m_10km_wireless_module_-_arduino_mega.inoArduino Mega

608 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// NSS=53, RST=9, DIO0=2 on Arduino Mega (MOSI/MISO/SCK use the board's default hardware SPI pins)

6#include <SPI.h>

7#include <LoRa.h>

9#define LORA_NSS 53

10#define LORA_RST 9

11#define LORA_DIO0 2

13void setup() {

14 Serial.begin(115200);

15 LoRa.setPins(LORA_NSS, LORA_RST, LORA_DIO0);

16 if (!LoRa.begin(433E6)) { // match your region's LoRa frequency (433/868/915 MHz)

17 Serial.println("LoRa init failed!");

18 while (1) delay(10);

19 }

20}

22void loop() {

23 LoRa.beginPacket();

24 LoRa.print("Hello from Ekostra");

25 LoRa.endPacket();

26 delay(2000);

27}

📄 File: ra-01_lora_sx1278_433m_10km_wireless_module_-_esp32.inoESP32

601 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// NSS=5, RST=14, DIO0=2 on ESP32 (MOSI/MISO/SCK use the board's default hardware SPI pins)

6#include <SPI.h>

7#include <LoRa.h>

9#define LORA_NSS 5

10#define LORA_RST 14

11#define LORA_DIO0 2

13void setup() {

14 Serial.begin(115200);

15 LoRa.setPins(LORA_NSS, LORA_RST, LORA_DIO0);

16 if (!LoRa.begin(433E6)) { // match your region's LoRa frequency (433/868/915 MHz)

17 Serial.println("LoRa init failed!");

18 while (1) delay(10);

19 }

20}

22void loop() {

23 LoRa.beginPacket();

24 LoRa.print("Hello from Ekostra");

25 LoRa.endPacket();

26 delay(2000);

27}

📄 File: ra-01_lora_sx1278_433m_10km_wireless_module_-_esp8266.inoESP8266

607 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// NSS=D8, RST=D0, DIO0=D1 on ESP8266 (MOSI/MISO/SCK use the board's default hardware SPI pins)

6#include <SPI.h>

7#include <LoRa.h>

9#define LORA_NSS D8

10#define LORA_RST D0

11#define LORA_DIO0 D1

13void setup() {

14 Serial.begin(115200);

15 LoRa.setPins(LORA_NSS, LORA_RST, LORA_DIO0);

16 if (!LoRa.begin(433E6)) { // match your region's LoRa frequency (433/868/915 MHz)

17 Serial.println("LoRa init failed!");

18 while (1) delay(10);

19 }

20}

22void loop() {

23 LoRa.beginPacket();

24 LoRa.print("Hello from Ekostra");

25 LoRa.endPacket();

26 delay(2000);

27}

📄 File: ra-01_lora_sx1278_433m_10km_wireless_module_-_stm32.inoSTM32

611 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// NSS=PA4, RST=PB0, DIO0=PB1 on STM32 (MOSI/MISO/SCK use the board's default hardware SPI pins)

6#include <SPI.h>

7#include <LoRa.h>

9#define LORA_NSS PA4

10#define LORA_RST PB0

11#define LORA_DIO0 PB1

13void setup() {

14 Serial.begin(115200);

15 LoRa.setPins(LORA_NSS, LORA_RST, LORA_DIO0);

16 if (!LoRa.begin(433E6)) { // match your region's LoRa frequency (433/868/915 MHz)

17 Serial.println("LoRa init failed!");

18 while (1) delay(10);

19 }

20}

22void loop() {

23 LoRa.beginPacket();

24 LoRa.print("Hello from Ekostra");

25 LoRa.endPacket();

26 delay(2000);

27}

📄 File: ra-01_lora_sx1278_433m_10km_wireless_module_-_raspberry_pi_pico.inoRaspberry Pi Pico

617 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// NSS=17, RST=20, DIO0=21 on Raspberry Pi Pico (MOSI/MISO/SCK use the board's default hardware SPI pins)

6#include <SPI.h>

7#include <LoRa.h>

9#define LORA_NSS 17

10#define LORA_RST 20

11#define LORA_DIO0 21

13void setup() {

14 Serial.begin(115200);

15 LoRa.setPins(LORA_NSS, LORA_RST, LORA_DIO0);

16 if (!LoRa.begin(433E6)) { // match your region's LoRa frequency (433/868/915 MHz)

17 Serial.println("LoRa init failed!");

18 while (1) delay(10);

19 }

20}

22void loop() {

23 LoRa.beginPacket();

24 LoRa.print("Hello from Ekostra");

25 LoRa.endPacket();

26 delay(2000);

27}

Project Notes:

SPI long-range LoRa transceiver.

Required Libraries:

LoRa (sandeepmistry)GitHub

نظرة عامة ومواصفات المنتج — بالعربية

Ra-01 LoRa SX1278 433M 10KM Wireless Module متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم IoT and Wireless وLORA WiFi، بسعر 500,00 EGP. كود المنتج لدينا: EK1948. المنتج غير متوفر حالياً — تواصل معنا عبر واتساب لمعرفة موعد توفره القادم.

أهم المواصفات الفنية:

Product Name: Ra-01 LoRa SX1278 Wireless Module
Type: LoRa Wireless Communication Module
الشريحة: SX1278
Frequency: 433 MHz
Communication Range: Up to 10 km (Line of Sight)
Operating Voltage: 3.3V DC
واجهة الاتصال: SPI
Transmission Power: 20 dBm (Max)

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من IoT and Wireless في إكوسترا.

Specification

WeightWeight	8 g
Dimensions	3 × 2 × 1 cm
Product Name	Ra-01 LoRa SX1278 Wireless Module
Type	LoRa Wireless Communication Module
Chipset	SX1278
Frequency	433 MHz
Communication Range	Up to 10 km (Line of Sight)
Operating Voltage	3.3V DC
Interface	SPI
Transmission Power	20 dBm (Max)
Sensitivity	-137 dBm
Modulation	LoRa / FSK
Features	Long Range, Low Power, Reliable Wireless Communication
Application	IoT Projects, Remote Sensing, Smart Agriculture, Wireless Data Transmission
