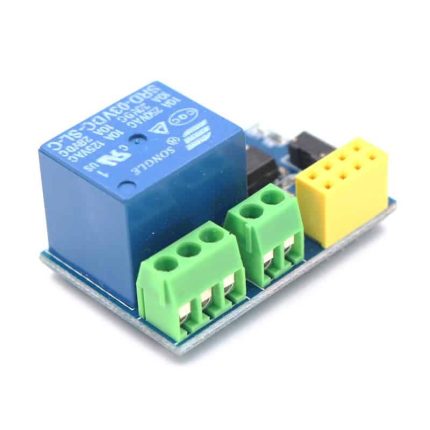

ESP-01S 5V WiFi Relay Module for Smart Home Control

ESP8266 wifi module onboard; in AP mode, it can connect to 5 clients simultaneously.
Operating Method: Using an APP, a cellphone connected to a wifi module on the same router may operate the relay.
Diode effusion protection.
Short response time

SKU: EK1560 Categories: ESP WiFi Module, IoT and Wireless Tags: ESP WiFi Module., IoT and Wireless, relay, WiFi

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

65,00 EGP

Compare

16 People watching this product now!

Payment Methods:

Description

ESP-01S 5V WiFi Relay Module for Smart Home Control

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Onboard relay	GPIO	(fixed onboard wiring - flash custom firmware onto the ESP-01S itself, e.g. via Tasmota or your own sketch)

📟

ESP-01S 5V WiFi Relay Module for Smart Home Control

1 Example • C/C++ | Boards: ESP32

Wrap

ESP-01S 5V WiFi Relay Module for Smart Home Control - ESP32

📄 File: esp-01s_5v_wifi_relay_module_for_smart_home_control_-_esp32.inoESP32

630 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This board doesn't get wired to an ESP32 - you REPLACE the ESP32 with it. Flash your own WiFi-relay sketch directly onto its own ESP8266 chip (same Arduino IDE ESP8266 core used for any ESP8266 board).

6#include <ESP8266WiFi.h>

8#define RELAY_PIN 0 // this module's relay is wired to GPIO0 internally

10void setup() {

11 pinMode(RELAY_PIN, OUTPUT);

12 WiFi.begin("YOUR_WIFI_SSID", "YOUR_WIFI_PASSWORD");

13 while (WiFi.status() != WL_CONNECTED) delay(500);

14}

16void loop() {

17 digitalWrite(RELAY_PIN, HIGH);

18 delay(2000);

19 digitalWrite(RELAY_PIN, LOW);

20 delay(2000);

21}

Project Notes:

ESP-01S combined with an onboard relay - flash it with Arduino-ESP8266 core to control the relay directly over WiFi (no separate driving board needed once flashed).

نظرة عامة ومواصفات المنتج — بالعربية

ESP-01S 5V WiFi Relay Module for Smart Home Control متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم ESP WiFi Module وIoT and Wireless، بسعر 65,00 EGP. كود المنتج لدينا: EK1560. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Product Name: ESP-01S 5V WiFi Relay Module for Smart Home Control
Type: WiFi Relay Module / IoT Switch
Controller: ESP-01S WiFi Module
Relay Type: Single-Channel Electromechanical Relay
Relay Voltage Rating: 5V DC Coil
Relay Load Capacity: 10A 250V AC / 10A 30V DC
واجهة الاتصال: WiFi 802.11 b/g/n
Power Supply: 5V DC

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من ESP WiFi Module في إكوسترا.

Specification

WeightWeight	10 g
Dimensions	5 × 2,5 × 1,8 cm
Product Name	ESP-01S 5V WiFi Relay Module for Smart Home Control
Type	WiFi Relay Module / IoT Switch
Controller	ESP-01S WiFi Module
Relay Type	Single-Channel Electromechanical Relay
Relay Voltage Rating	5V DC Coil
Relay Load Capacity	10A 250V AC / 10A 30V DC
Interface	WiFi 802.11 b/g/n
Power Supply	5V DC
Control Method	Remote via WiFi / Smartphone / IoT App
Indicator	LED Status for Relay and Power
Operating Temperature Range	-20°C – +60°C
Mounting Type	PCB Module / Screw Terminal
Material	PCB with SMD Components and Relay
Applications	Smart Home Automation, Remote Switch Control, Arduino / ESP8266 / DIY IoT Projects
Package Contents	1× ESP-01S 5V WiFi Relay Module
