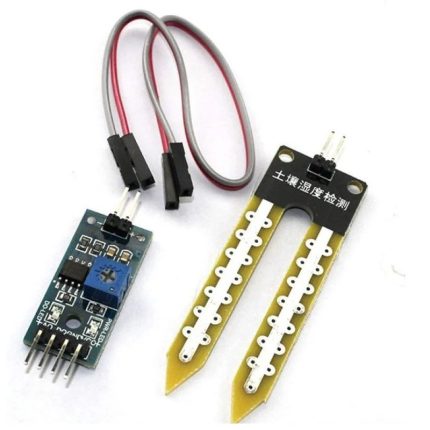

Soil Moisture Meter Sensor for Arduino

Name: Soil Moisture Meter Sensor for Arduino
SKU: EK402
Price: 75.00 EGP
Availability: InStock

Soil Moisture Meter Sensor for Arduino
1. Sensing Method: Resistive (dual probe)
2. Output Type: Analog
3. Probe Dimension: Approx. 6cm x 3cm
4. Compatibility: Arduino and other microcontrollers

SKU: EK402 Categories: Environmental Sensors, Sensors Tags: Arduino, Arduino sensor | حساس اردوينو, Environmental Sensors, plant watering sensor | حساس ري النباتات, Sensors, soil humidity sensor | حساس رطوبة, soil hygrometer | مقياس رطوبة التربة, soil moisture sensor | حساس رطوبة التربة, water sensor | حساس ماء

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

75,00 EGP

Compare

12 People watching this product now!

Payment Methods:

Description

This is Soil Moisture Meter, Soil Humidity Sensor, Water Sensor, Soil Hygrometer for Ardunio. With this module, you can tell when your plants need watering by how moist the soil is in your pot, garden, or yard. The two probes on the sensor act as variable resistors. Use it in a home automated watering system, hook it up to IoT, or just use it to find out when your plant needs a little love. Installing this sensor and its PCB will have you on your way to growing a green thumb!

The soil moisture sensor consists of two probes which are used to measure the volumetric content of water. The two probes allow the current to pass through the soil and then it gets the resistance value to measure the moisture value.

When there is more water, the soil will conduct more electricity which means that there will be less resistance. Therefore, the moisture level will be higher. Dry soil conducts electricity poorly, so when there will be less water, then the soil will conduct less electricity which means that there will be more resistance. Therefore, the moisture level will be lower.

Wiring Connection

VCC: 3.3V-5V
GND: GND
DO: Digital output interface(0 and 1)
AO: Analog output interface

Features :

Dual output mode, analog output more accurate
A fixed bolt hole for easy installation
With power indicator (red) and digital switching output indicator (green)
Having LM393 comparator chip, stable.

Package Includes :

1 x Soil Moisture Sensor Kit

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Soil Sensor	VCC/GND/AOUT	3.3-5V / GND / board analog pin

📟

Soil Moisture Meter Sensor for Arduino

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

Soil Moisture Meter Sensor for Arduino - Arduino Uno

Soil Moisture Meter Sensor for Arduino - Arduino Nano

Soil Moisture Meter Sensor for Arduino - Arduino Mega

Soil Moisture Meter Sensor for Arduino - ESP32

Soil Moisture Meter Sensor for Arduino - ESP8266

Soil Moisture Meter Sensor for Arduino - STM32

Soil Moisture Meter Sensor for Arduino - Raspberry Pi Pico

📄 File: soil_moisture_meter_sensor_for_arduino_-_arduino_uno.inoArduino Uno

538 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Uno. Lower reading = wetter soil (less resistance between probes).

6#define SOIL_PIN A0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(SOIL_PIN);

14 float voltage = raw * 5.0 / 1023.0;

16 Serial.print("Soil moisture raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.print(voltage);

18 Serial.println(raw < 500 ? " -> Wet" : " -> Dry"); // calibrate threshold for your own soil/probe

20 delay(1000);

21}

📄 File: soil_moisture_meter_sensor_for_arduino_-_arduino_nano.inoArduino Nano

539 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Nano. Lower reading = wetter soil (less resistance between probes).

6#define SOIL_PIN A0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(SOIL_PIN);

14 float voltage = raw * 5.0 / 1023.0;

16 Serial.print("Soil moisture raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.print(voltage);

18 Serial.println(raw < 500 ? " -> Wet" : " -> Dry"); // calibrate threshold for your own soil/probe

20 delay(1000);

21}

📄 File: soil_moisture_meter_sensor_for_arduino_-_arduino_mega.inoArduino Mega

539 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Mega. Lower reading = wetter soil (less resistance between probes).

6#define SOIL_PIN A0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(SOIL_PIN);

14 float voltage = raw * 5.0 / 1023.0;

16 Serial.print("Soil moisture raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.print(voltage);

18 Serial.println(raw < 500 ? " -> Wet" : " -> Dry"); // calibrate threshold for your own soil/probe

20 delay(1000);

21}

📄 File: soil_moisture_meter_sensor_for_arduino_-_esp32.inoESP32

532 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin 34 on ESP32. Lower reading = wetter soil (less resistance between probes).

6#define SOIL_PIN 34

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(SOIL_PIN);

14 float voltage = raw * 3.3 / 4095.0;

16 Serial.print("Soil moisture raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.print(voltage);

18 Serial.println(raw < 500 ? " -> Wet" : " -> Dry"); // calibrate threshold for your own soil/probe

20 delay(1000);

21}

📄 File: soil_moisture_meter_sensor_for_arduino_-_esp8266.inoESP8266

534 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on ESP8266. Lower reading = wetter soil (less resistance between probes).

6#define SOIL_PIN A0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(SOIL_PIN);

14 float voltage = raw * 3.3 / 1023.0;

16 Serial.print("Soil moisture raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.print(voltage);

18 Serial.println(raw < 500 ? " -> Wet" : " -> Dry"); // calibrate threshold for your own soil/probe

20 delay(1000);

21}

📄 File: soil_moisture_meter_sensor_for_arduino_-_stm32.inoSTM32

534 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin PA0 on STM32. Lower reading = wetter soil (less resistance between probes).

6#define SOIL_PIN PA0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(SOIL_PIN);

14 float voltage = raw * 3.3 / 4095.0;

16 Serial.print("Soil moisture raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.print(voltage);

18 Serial.println(raw < 500 ? " -> Wet" : " -> Dry"); // calibrate threshold for your own soil/probe

20 delay(1000);

21}

📄 File: soil_moisture_meter_sensor_for_arduino_-_raspberry_pi_pico.inoRaspberry Pi Pico

544 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin 26 on Raspberry Pi Pico. Lower reading = wetter soil (less resistance between probes).

6#define SOIL_PIN 26

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(SOIL_PIN);

14 float voltage = raw * 3.3 / 4095.0;

16 Serial.print("Soil moisture raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.print(voltage);

18 Serial.println(raw < 500 ? " -> Wet" : " -> Dry"); // calibrate threshold for your own soil/probe

20 delay(1000);

21}

Project Notes:

Resistive analog soil moisture sensor (two-prong probe).

نظرة عامة ومواصفات المنتج — بالعربية

Soil Moisture Meter Sensor for Arduino متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Environmental Sensors وSensors، بسعر 75,00 EGP. كود المنتج لدينا: EK402. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Soil Probe Dimension: Approx. 6cm x 3cm
Sensing Method: Resistive
Output Type: Analog
الوزن: 2 g

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من Environmental Sensors في إكوسترا.

Specification

WeightWeight	20,0000 g
Dimensions	3 × 2 × 1 cm
Soil Probe Dimension	Approx. 6cm x 3cm
Sensing Method	Resistive
Output Type	Analog
