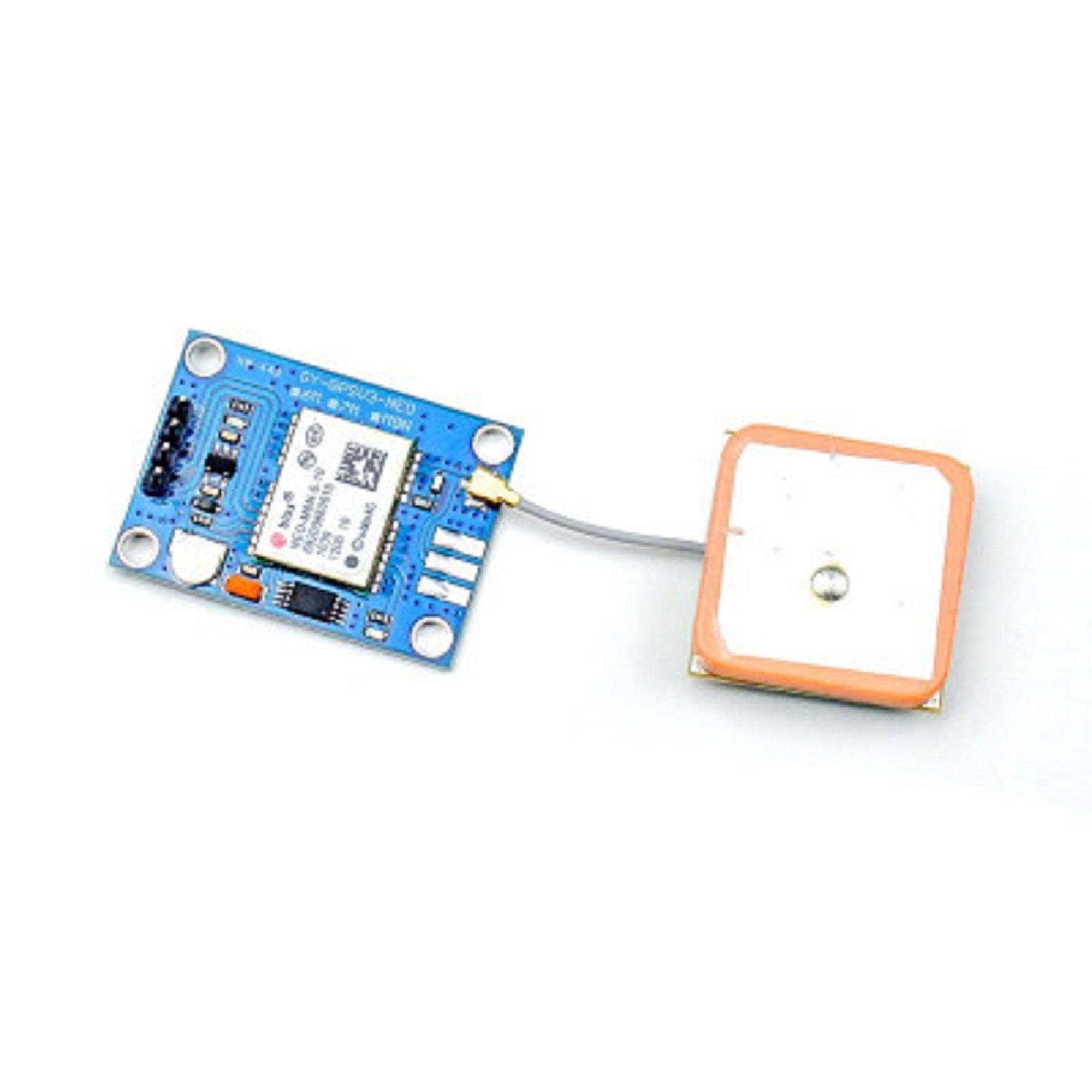

NEO-M8N GPS Module with Ceramic Active Antenna

  • 📡 NEO-M8N GPS module with ceramic active antenna
  • 🛰️ High-sensitivity positioning for fast, stable GPS lock
  • 📍 Provides accurate location, speed, and time data
  • 🔌 UART interface (and I2C/SPI depending on board)
  • 🧩 Ideal for drones, robotics, trackers, and navigation projects
  • ⚡ Works with common microcontrollers and flight controllers
  • 📦 Compact module—easy to mount and integrate
  • ✅ Great choice for outdoor positioning and timing applications
SKU: EK496 Categories: , Tags: ,

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

800,00 EGP

Compare
20 People watching this product now!

Payment Methods:

Description

The APM2.5 NEO-M8N GPS Module GYGPSV1-8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

The NEO-M8 series of concurrent GNSS modules are built on the high performing M8 GNSS engine in the industry proven NEO form factor.NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

Note: It is a manual measurement, there may be 2-3 mm error. And item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

Features :

  1. The ceramic antenna provides a very strong signal
  2. With LED indicator lamp
  3. The default baud rate: 9600.
  4. With data backup battery.
  5. LED signal indicator.
  6. Compatible with various flight controller module.
  7. EEPROM save the configuration parameter data when power-down.
  8. Assistance AssistNow GNSS Online
  9. AssistNow GNSS Offline (up to 35 days)
  10. AssistNow Autonomous (up to 6 days)
  11. OMA SUPL & 3GPP compliant
  12. Oscillator TCXO
  13. Built-in RTC crystal
  14. Anti-jamming Active CW detection and removal.
  15. Extra onboard SAW bandpass filter
  16. Memory Flash
  17. Supported antennas Active and passive
  18. Odometer Travelled distance
  19. Data-logger For position, velocity, and time

Find detailed features and specifications in datasheet at Attachment.

Package Includes :

1 x APM 2.5 NEO M8N GPS Module.

1 x Ceramic Active Antenna.

🔌
Pin Connections
1 Table
Pin Connections Table 1
BoardSensor PinConnection
NEO-M8NVCC/GND/TX/RX3.3-5V / GND / board RX pin / board TX pin
📟
NEO-M8N GPS Module with Ceramic Active Antenna
7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico
NEO-M8N GPS Module with Ceramic Active Antenna - Arduino Uno
NEO-M8N GPS Module with Ceramic Active Antenna - Arduino Nano
NEO-M8N GPS Module with Ceramic Active Antenna - Arduino Mega
NEO-M8N GPS Module with Ceramic Active Antenna - ESP32
NEO-M8N GPS Module with Ceramic Active Antenna - ESP8266
NEO-M8N GPS Module with Ceramic Active Antenna - STM32
NEO-M8N GPS Module with Ceramic Active Antenna - Raspberry Pi Pico
📄 File: neo-m8n_gps_module_with_ceramic_active_antenna_-_arduino_uno.inoArduino Uno
524 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=2, TX=3 on Arduino Uno
6#include <SoftwareSerial.h>
7SoftwareSerial LINK_SERIAL(2, 3);
8
9#include <TinyGPS++.h>
10
11TinyGPSPlus gps;
12
13void setup() {
14 Serial.begin(115200);
15 LINK_SERIAL.begin(9600);
16}
17
18void loop() {
19 while (LINK_SERIAL.available()) {
20 gps.encode(LINK_SERIAL.read());
21 }
22 if (gps.location.isUpdated()) {
23 Serial.print("Lat: "); Serial.print(gps.location.lat(), 6);
24 Serial.print(" Lng: "); Serial.println(gps.location.lng(), 6);
25 }
26}
📄 File: neo-m8n_gps_module_with_ceramic_active_antenna_-_arduino_nano.inoArduino Nano
525 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=2, TX=3 on Arduino Nano
6#include <SoftwareSerial.h>
7SoftwareSerial LINK_SERIAL(2, 3);
8
9#include <TinyGPS++.h>
10
11TinyGPSPlus gps;
12
13void setup() {
14 Serial.begin(115200);
15 LINK_SERIAL.begin(9600);
16}
17
18void loop() {
19 while (LINK_SERIAL.available()) {
20 gps.encode(LINK_SERIAL.read());
21 }
22 if (gps.location.isUpdated()) {
23 Serial.print("Lat: "); Serial.print(gps.location.lat(), 6);
24 Serial.print(" Lng: "); Serial.println(gps.location.lng(), 6);
25 }
26}
📄 File: neo-m8n_gps_module_with_ceramic_active_antenna_-_arduino_mega.inoArduino Mega
493 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=19, TX=18 on Arduino Mega
6#define LINK_SERIAL Serial1
7
8#include <TinyGPS++.h>
9
10TinyGPSPlus gps;
11
12void setup() {
13 Serial.begin(115200);
14 LINK_SERIAL.begin(9600);
15}
16
17void loop() {
18 while (LINK_SERIAL.available()) {
19 gps.encode(LINK_SERIAL.read());
20 }
21 if (gps.location.isUpdated()) {
22 Serial.print("Lat: "); Serial.print(gps.location.lat(), 6);
23 Serial.print(" Lng: "); Serial.println(gps.location.lng(), 6);
24 }
25}
📄 File: neo-m8n_gps_module_with_ceramic_active_antenna_-_esp32.inoESP32
486 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=16, TX=17 on ESP32
6#define LINK_SERIAL Serial1
7
8#include <TinyGPS++.h>
9
10TinyGPSPlus gps;
11
12void setup() {
13 Serial.begin(115200);
14 LINK_SERIAL.begin(9600);
15}
16
17void loop() {
18 while (LINK_SERIAL.available()) {
19 gps.encode(LINK_SERIAL.read());
20 }
21 if (gps.location.isUpdated()) {
22 Serial.print("Lat: "); Serial.print(gps.location.lat(), 6);
23 Serial.print(" Lng: "); Serial.println(gps.location.lng(), 6);
24 }
25}
📄 File: neo-m8n_gps_module_with_ceramic_active_antenna_-_esp8266.inoESP8266
524 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=D7, TX=D8 on ESP8266
6#include <SoftwareSerial.h>
7SoftwareSerial LINK_SERIAL(D7, D8);
8
9#include <TinyGPS++.h>
10
11TinyGPSPlus gps;
12
13void setup() {
14 Serial.begin(115200);
15 LINK_SERIAL.begin(9600);
16}
17
18void loop() {
19 while (LINK_SERIAL.available()) {
20 gps.encode(LINK_SERIAL.read());
21 }
22 if (gps.location.isUpdated()) {
23 Serial.print("Lat: "); Serial.print(gps.location.lat(), 6);
24 Serial.print(" Lng: "); Serial.println(gps.location.lng(), 6);
25 }
26}
📄 File: neo-m8n_gps_module_with_ceramic_active_antenna_-_stm32.inoSTM32
489 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=PA10, TX=PA9 on STM32
6#define LINK_SERIAL Serial1
7
8#include <TinyGPS++.h>
9
10TinyGPSPlus gps;
11
12void setup() {
13 Serial.begin(115200);
14 LINK_SERIAL.begin(9600);
15}
16
17void loop() {
18 while (LINK_SERIAL.available()) {
19 gps.encode(LINK_SERIAL.read());
20 }
21 if (gps.location.isUpdated()) {
22 Serial.print("Lat: "); Serial.print(gps.location.lat(), 6);
23 Serial.print(" Lng: "); Serial.println(gps.location.lng(), 6);
24 }
25}
📄 File: neo-m8n_gps_module_with_ceramic_active_antenna_-_raspberry_pi_pico.inoRaspberry Pi Pico
496 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=1, TX=0 on Raspberry Pi Pico
6#define LINK_SERIAL Serial1
7
8#include <TinyGPS++.h>
9
10TinyGPSPlus gps;
11
12void setup() {
13 Serial.begin(115200);
14 LINK_SERIAL.begin(9600);
15}
16
17void loop() {
18 while (LINK_SERIAL.available()) {
19 gps.encode(LINK_SERIAL.read());
20 }
21 if (gps.location.isUpdated()) {
22 Serial.print("Lat: "); Serial.print(gps.location.lat(), 6);
23 Serial.print(" Lng: "); Serial.println(gps.location.lng(), 6);
24 }
25}
UART GPS receiver, higher sensitivity than NEO-6M.
TinyGPS++GitHub
All copy right for ekostra.com

نظرة عامة ومواصفات المنتج — بالعربية

NEO-M8N GPS Module with Ceramic Active Antenna متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم GSM / GPRS Modules وIoT and Wireless، بسعر 800,00 EGP. كود المنتج لدينا: EK496. المنتج غير متوفر حالياً — تواصل معنا عبر واتساب لمعرفة موعد توفره القادم.

أهم المواصفات الفنية:

  • Product Name: NEO-M8N GPS Module with Ceramic Active Antenna
  • Type: GPS Receiver Module
  • الموديل: NEO-M8N
  • Antenna Type: Ceramic Active Antenna
  • Operating Voltage: 3.3–5 V DC
  • واجهة الاتصال: UART / TTL Serial
  • Position Accuracy: ±2.5 m (typical)
  • Update Rate: Up to 10 Hz

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من GSM / GPRS Modules في إكوسترا.

Specification

Specification

WeightWeight8 g
Dimensions2,5 × 2,5 × 0,4 cm
Product NameNEO-M8N GPS Module with Ceramic Active Antenna
TypeGPS Receiver Module
ModelNEO-M8N
Antenna TypeCeramic Active Antenna
Operating Voltage3.3–5 V DC
InterfaceUART / TTL Serial
Position Accuracy±2.5 m (typical)
Update RateUp to 10 Hz
Channels72 Tracking Channels (multi-GNSS: GPS, GLONASS, Galileo, QZSS, BeiDou)
Operating Temperature-40°C to +85°C
MaterialPCB Module with Ceramic Antenna
ApplicationsGPS Positioning, Navigation Projects, Arduino / Raspberry Pi, Drone / Robot Positioning, IoT GPS Applications
Package Contents1× NEO-M8N GPS Module with Ceramic Active Antenna
